Vital Sign Detection
Radar Solution

Care-Line On
• Vital sign detection
• Object distance detection
• Multiple Object Detction
Radar Sensor Node
60GHz FMCW Radar
High Presison
Multi-Channel

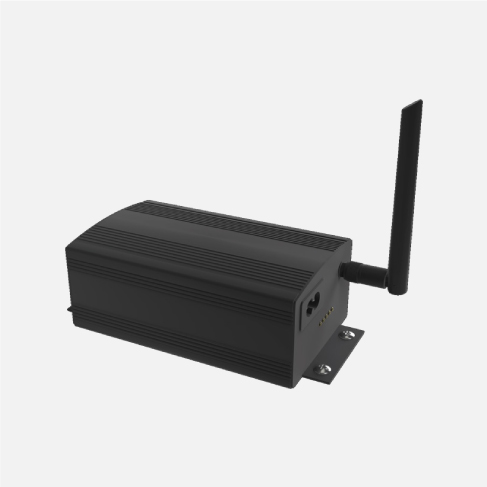

Gateway
920MHz private Network
No communication cost
Coverage 1.5km(outdoor)
300m(indoor)

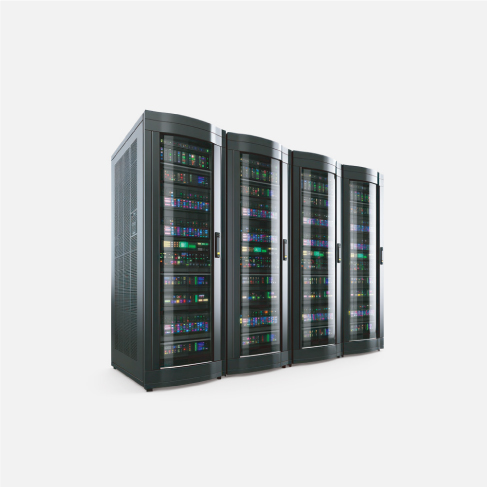

Monitoring Server
TCP/IP Connection
Radar data collection
Risk analysis & Monitoring

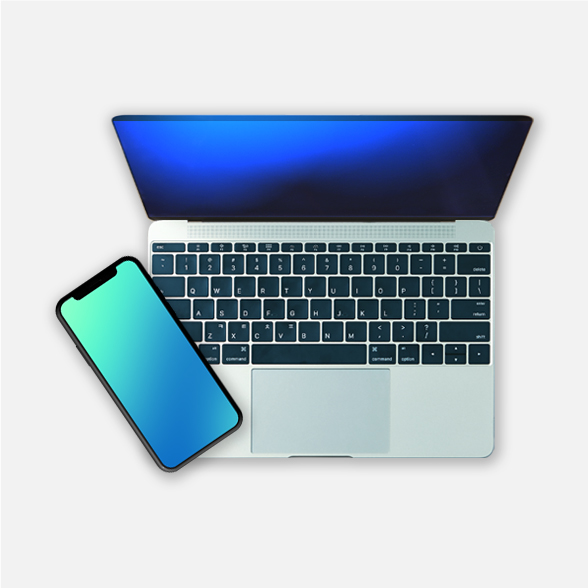

Smart Phone/PC
Convenient user IF
Monitoring Vital Sign
Monitoring Risk
Application
01
Risk monitoring for classroom, dormitory,restroom in school, military
02
Vital sign and falling detection in hospital, nursing home and nursing hospital
03
Single elderly person household management and home healthcare

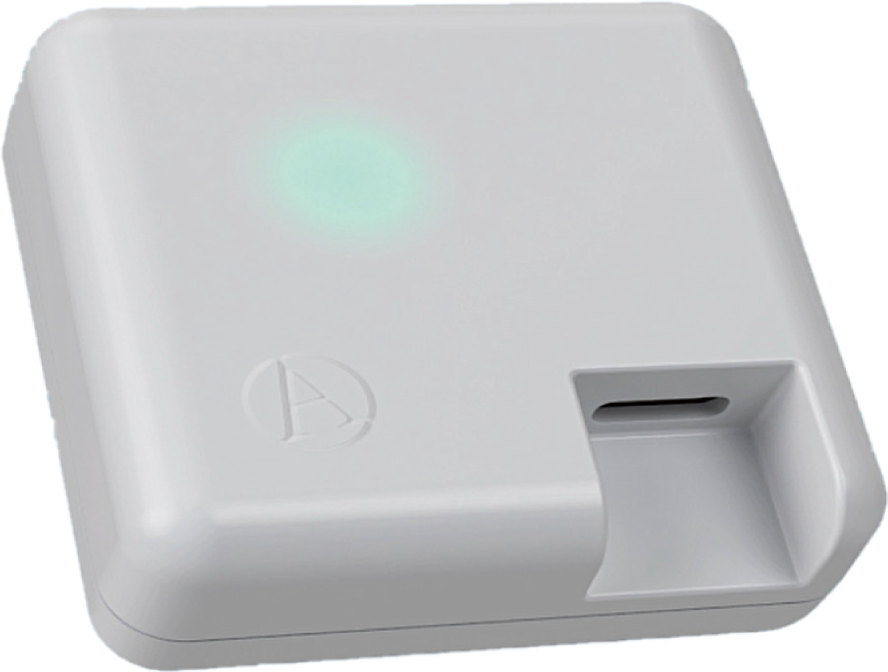

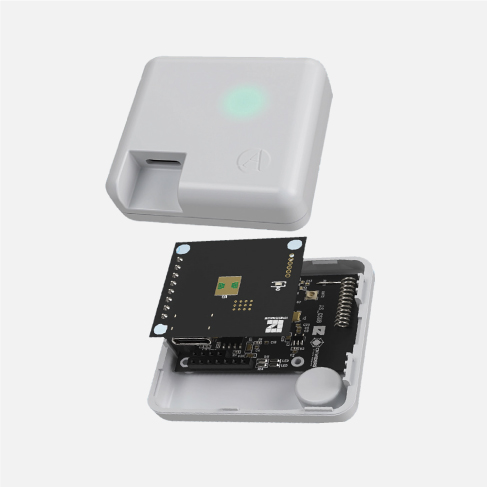

AS-GSUB
Node Rev.1
G-SUB Integrated RADAR Sensor Node
- Motion Detection
- Distance Measurement
- Vital sign(BR, HR, HRV)
Measurement
- Frequency
60GHz
- Antenna
1Tx(EIRP : 10dBm), 4Rx
Antenna Gain : 3dBi

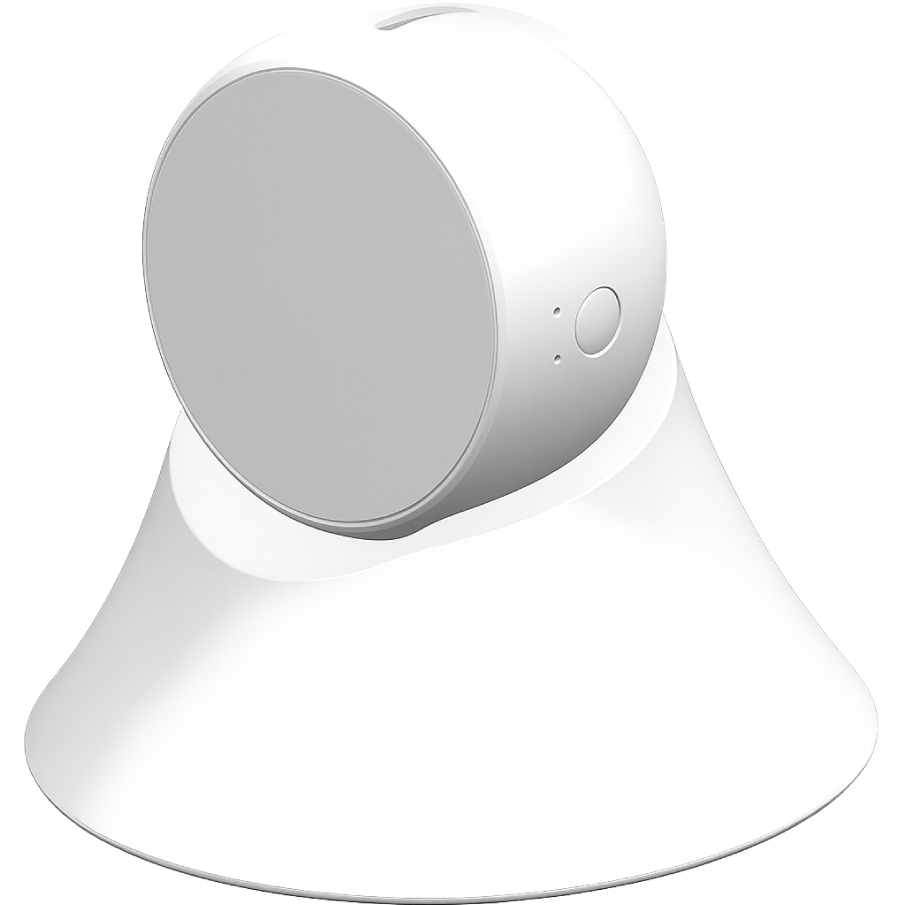

AS-GSUB
Node Rev.2
G-SUB Integrated RADAR Sensor Node
- Motion Detection
- Distance Measurement
- Vital sign(BR, HR, HRV)
Measurement
- Frequency
60GHz
- Antenna
1Tx(EIRP : 10dBm), 4Rx
Antenna Gain : 3dBi
Inter-connect
more than 50
radar sensor node

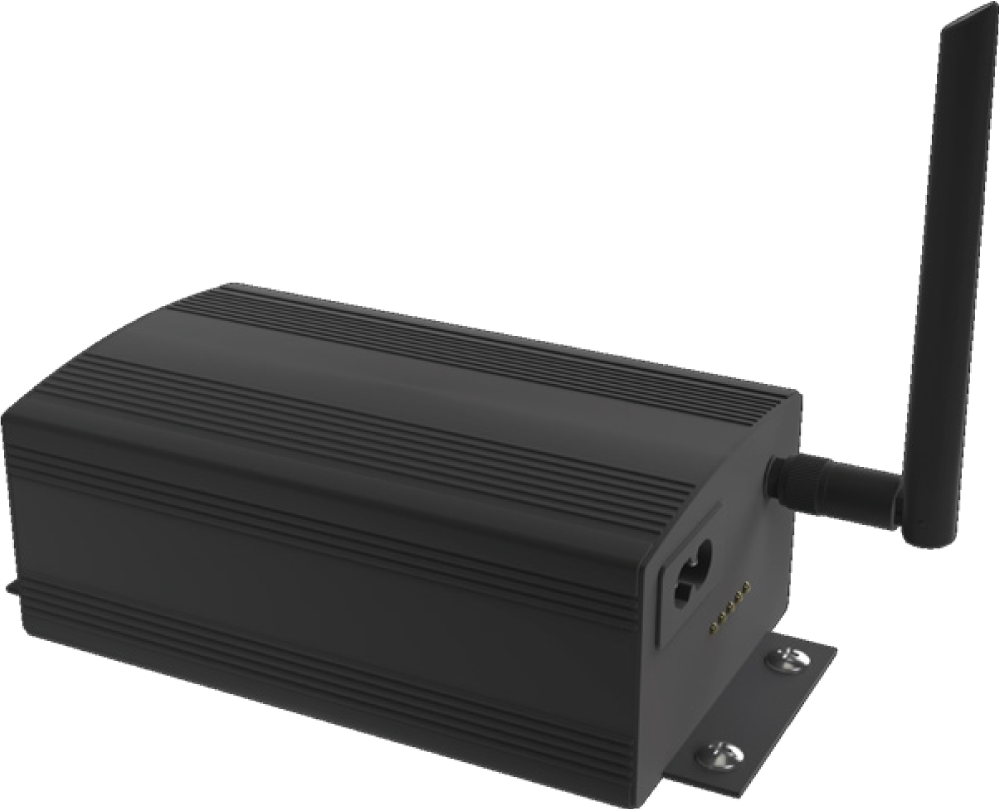

CNG300
Gateway for G-SUB radar sensor network
- Demension(W×L×H)
124mm × 74mm × 50mm
- Weight
305g
- Material
EGI-1.2T
- Feature
920MHz ~ 926MHz
- MCU
STM32F407VE (Arm Cortex-M4 core with DSP and FPU, 512 Kbytes of Flash memory, 168 MHz CPU)
TI CC1310 Sub-1GHz Wireless MCU
(32Bits ARM Cortex)

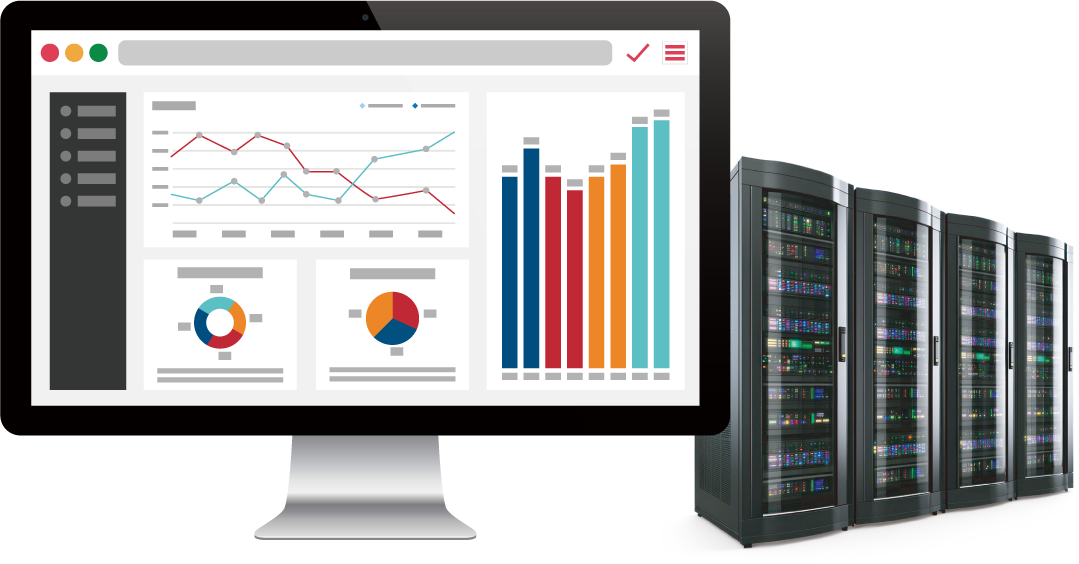

Management
Server
Remote monitoring of various status & risk
- A comprehensive summary
(patient rooms)
- Real-time monitoring
(Patient posture, Vital sign status, Risk event)
- Risk alert
- Displays detailed information of patient
- Periodic and monthly patient status report
- Sleep duration and sleep quality/status
